centropower Ethernet Extender Kit Gigabit Waterproof Outdoor Poe Extender, Single Port Poe Signal Extender Compatible Standard 802.3af/at, Entropower 1 Port Booster Bridge Repeater High Speed Refurbished

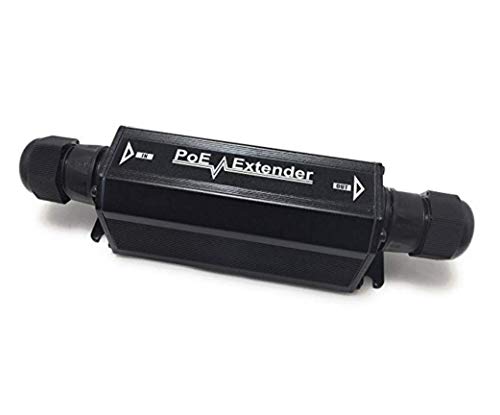

Gigabit Waterproof PoE Extender ( POE-EX2001-W) Industrial Grade -40 to 45

Power-Over-Ethernet Extender Gigabit Extender IP66 Technical Description No. of channels 1 Pass Through Data Rates 10/100/1000M Mbps half / full deplex

PoE input Pin Assignment and Polarity: Both 1/2 (-), 3/6 () and 7/8 (-), 4/5 ()

PoE output Pin Assignment and Polarity: 1/2 (-), 3/6 ()

Output Power: up to 22W

Power indicator: PoE enabled

Network indicator: Link/Act Network cables Shielded category 5 (or higher)

Case Material Metal, Dimensions: 216mm x 58.5mm x 38mm , Weight 1.2 LB

Mounting Wall of shelf Environment outdoor Environmental Conditions

Operating Ambient Temperature: -40 to 45 @90%, Non-condensing

Storage Temperature: -40 to 70 @95%,

Non-condensing Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE) RoHS

Compliant, CE, FCC Electromagnetic FCC Part15, Class B Maximum Distances for Power

Sources Multiple PoE Extenders can be connected every 100 meters to obtain greater

distances. The actual figures depend on operating conditions. The range is over 24 AWG

or heavier Cat-5e or Cat-6 cable except where specified. Examples for medium power PoE Devices.
